MAYAK Plant
Boilers of the STANDARD series are designed for heating individual residential buildings and utility or public facilities equipped with water-based heating systems, either with natural or forced circulation of the coolant.
Heating area: 120–200 m²
Efficiency: from 76%
Metal thickness: 4 mm
Fuel types: firewood, peat, coal, briquettes
Burning duration: up to 8 hours
Fuel loading: manual
Power output: 12–20 kW
Warranty: 3 years

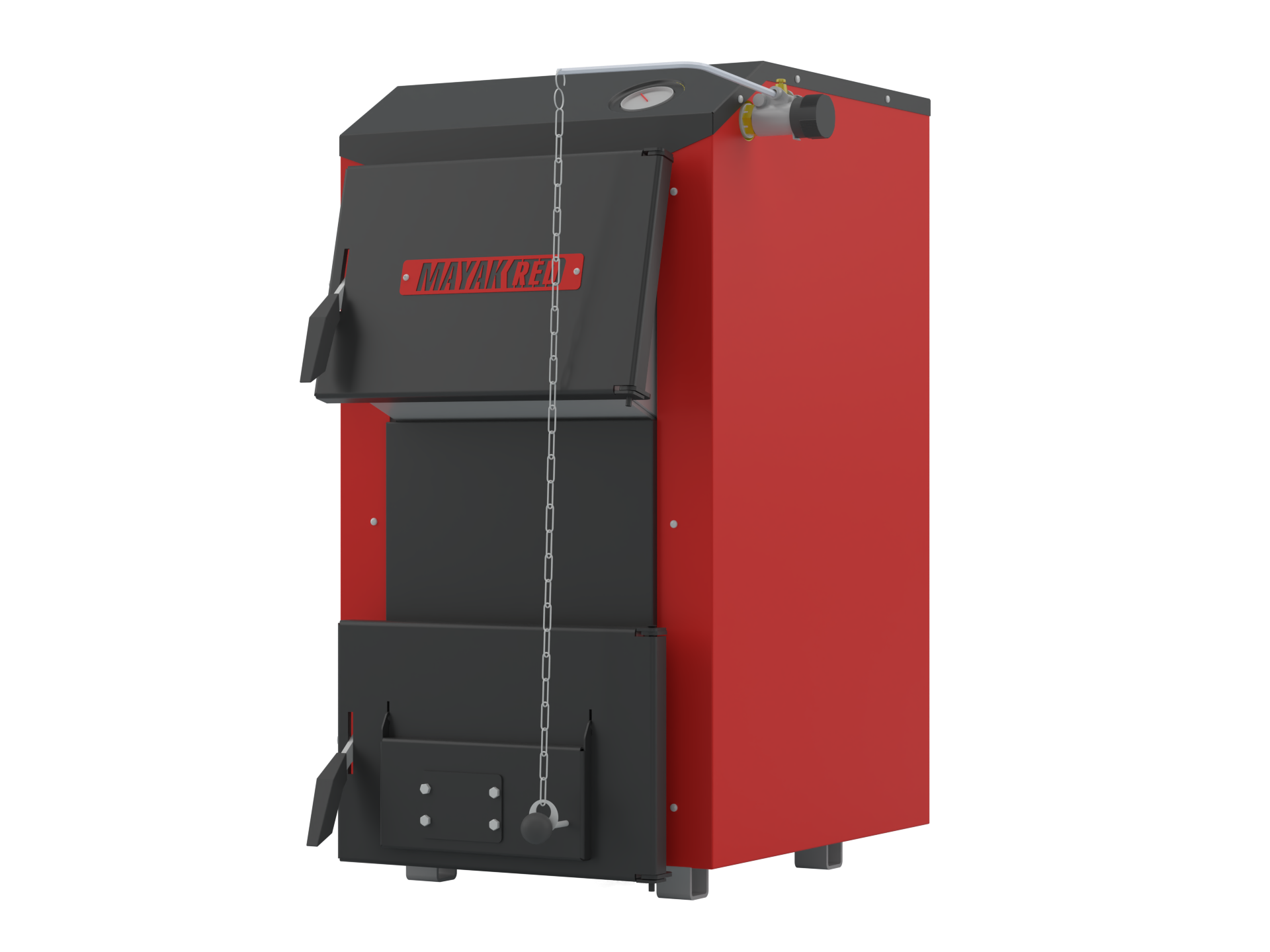

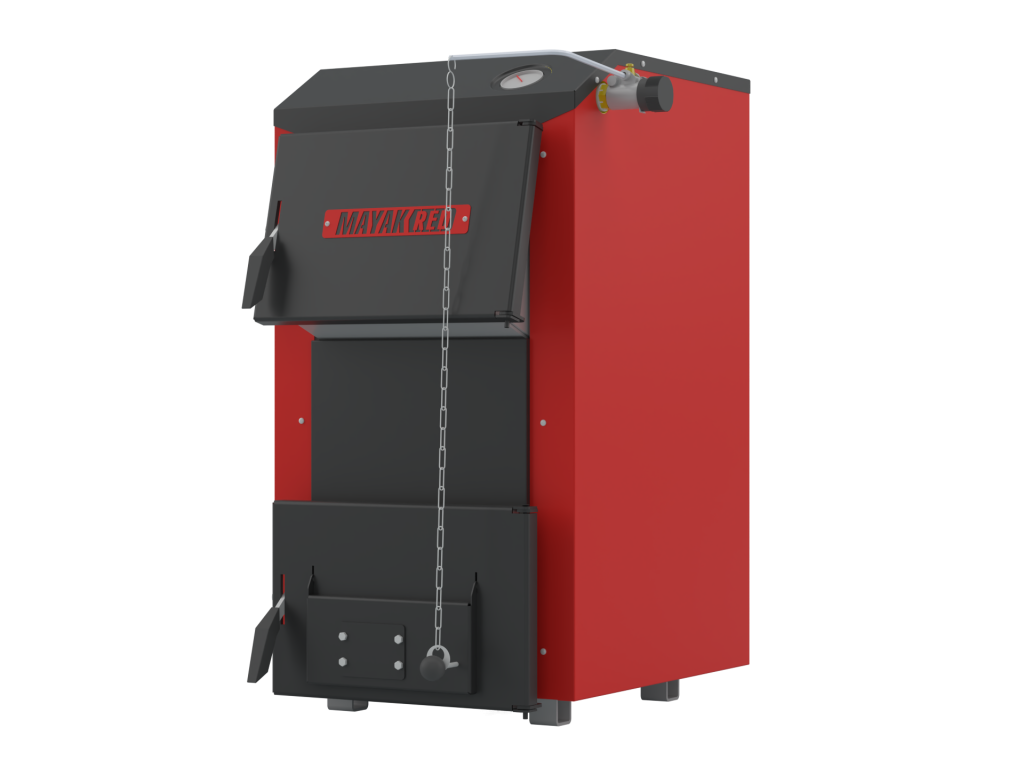

Additional equipment for operation with a mechanical temperature controller

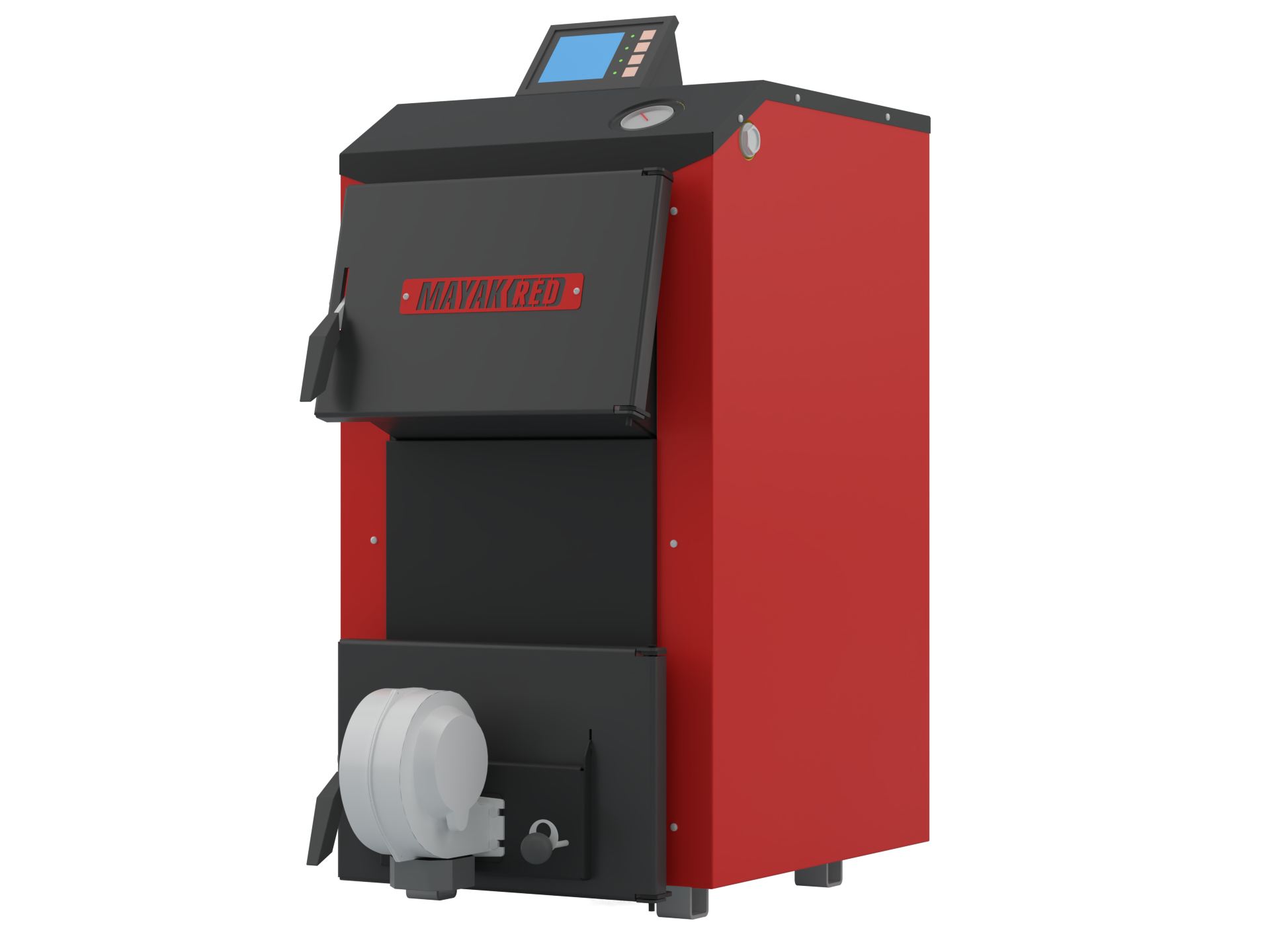

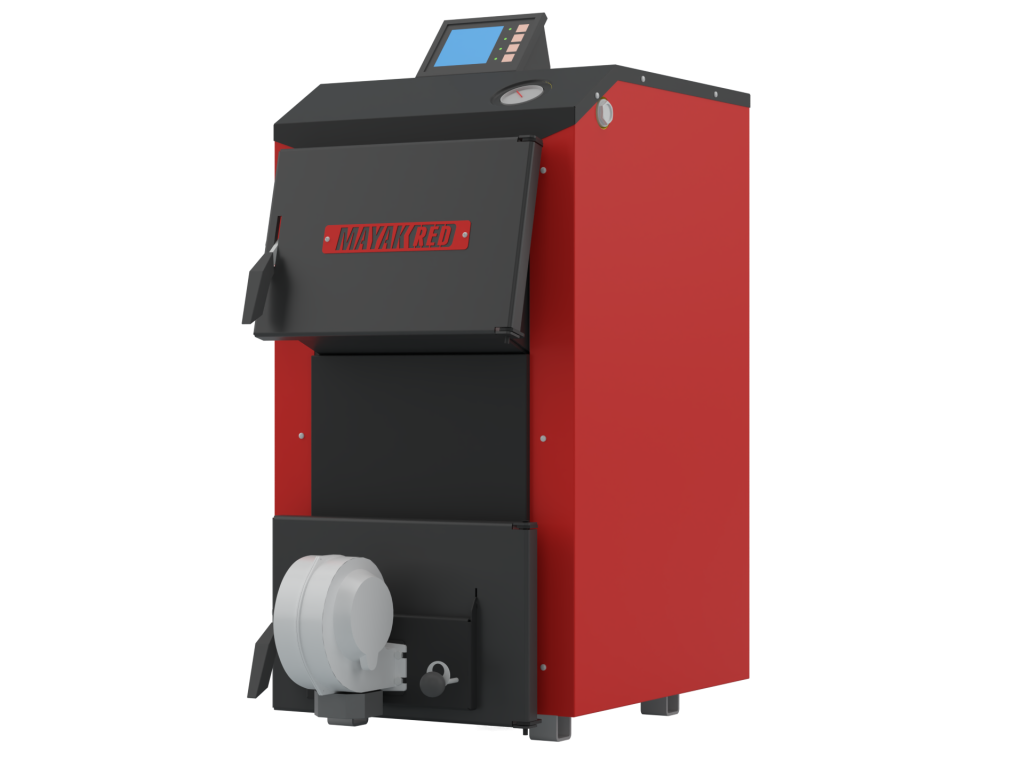

Additional equipment for operation with an electronic temperature controller and fan
| Characteristic | Units | АОТ-12 | АОТ-14 | АОТ-16 | АОТ-20 |
|---|---|---|---|---|---|
| Power | kW | 12 | 14 | 16 | 20 |
| Heating area | m² | 120 | 140 | 160 | 200 |
| Metal thickness | mm | 4 | |||
| Flue outlet outer diameter | mm | 129 | 149 | ||
| Firebox depth | mm | 316 | 415 | ||
| Firebox width | mm | 210 | 290 | 316 | |
| Firebox height | mm | 370 | |||
| Firebox volume | L | 24,5 | 34 | 48,5 | |
| Heat carrier (water) volume | L | 42 | 48 | 60 | 63 |
| Dry weight | kg | 98 | 114 | 131 | 142 |
| Height | mm | 880 | |||
| Width | mm | 360 | 440 | 470 | |
| Depth | mm | 650 | 760 | ||
