Long-Burning Solid Fuel Boilers ECO MANUAL type V

The ECO MANUAL Type V series of long-burning steel hot-water boilers represents the flagship line of universal solid fuel boilers, designed for heating premises equipped with water-based heating systems with either natural or forced circulation of the heat carrier. These boilers are intended for operation on various types of solid fuel — anthracite, hard and brown coal, firewood, briquettes, or pellets (when additionally equipped with an automatic torch-type pellet burner).

Features

  • Feature Icon

    Heating area: 120–500 m²

  • Feature Icon

    Efficiency: from 83%

  • Feature Icon

    Metal thickness: 6 mm

  • Feature Icon

    Fuel types: firewood, peat, coal, briquettes

  • Feature Icon

    Burning duration: up to 24 hours

  • Feature Icon

    Fuel loading: manual

  • Feature Icon

    Power output: 16–50 kW

  • Feature Icon

    Warranty: 3 years

Advantages

  • High efficiency
  • Enlarged combustion chamber volume
  • Water-filled grates
  • Steel thickness: 6 mm
  • High-quality thermal insulation
  • Adjustable legs
  • Can be optionally equipped with an automatic torch-type pellet burner
  • Capable of operating on coal, briquettes, or firewood in manual loading mode

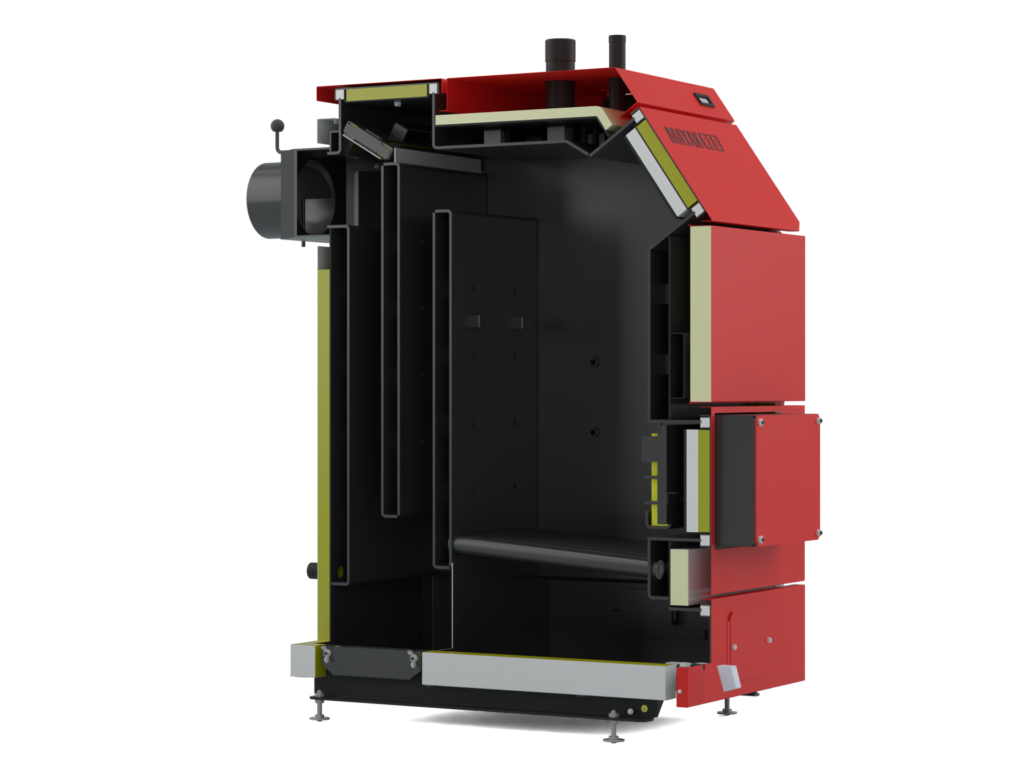

  • Multi-level air distribution system in the combustion chamber
  • Burning duration up to 24 hours on a single fuel load, depending on fuel calorific value

Configurations

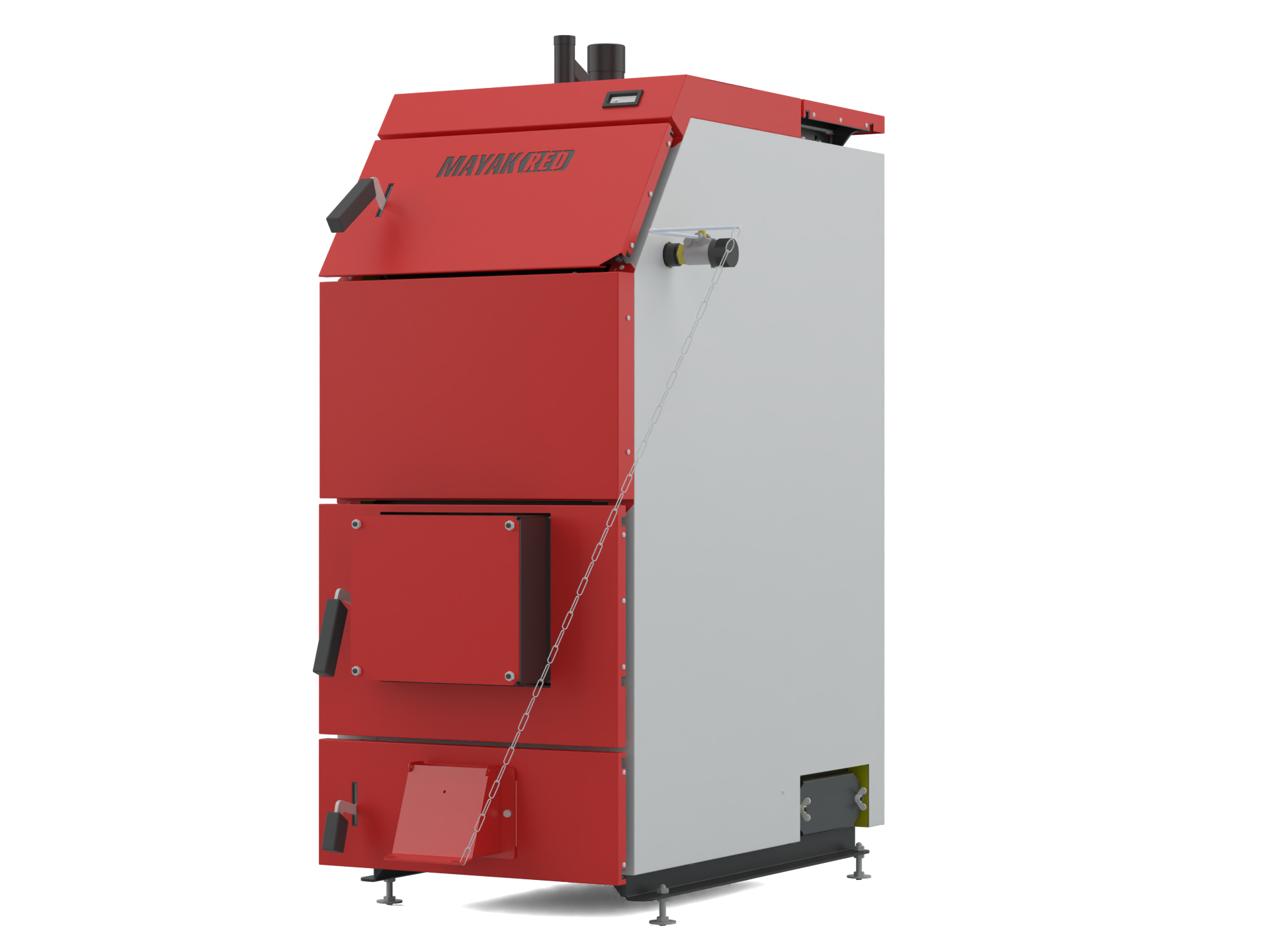

  1. Котел МАЯК КТР-25 TYPE V з регулятором
    01

    Additional equipment for operation with a mechanical temperature controller

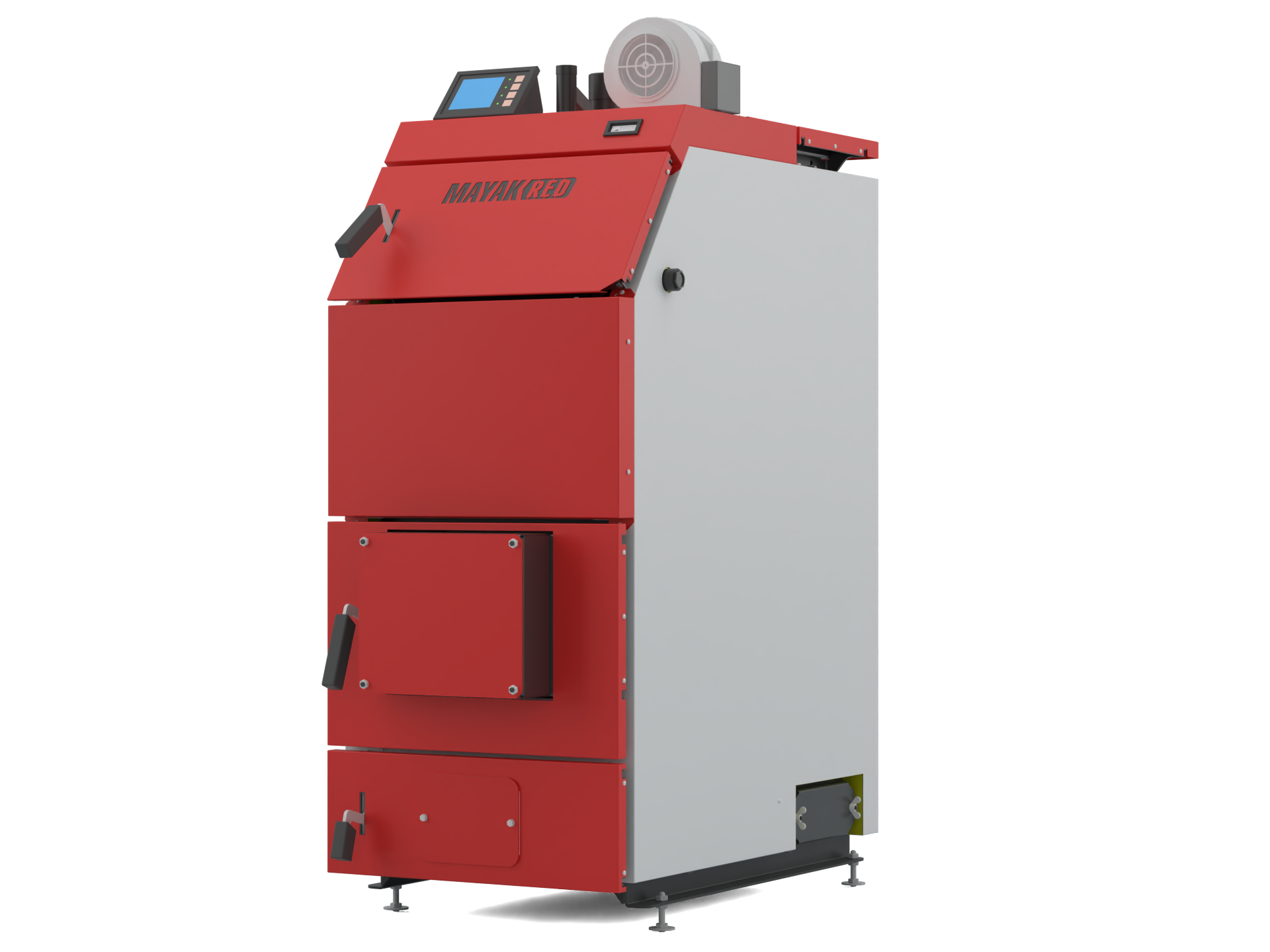

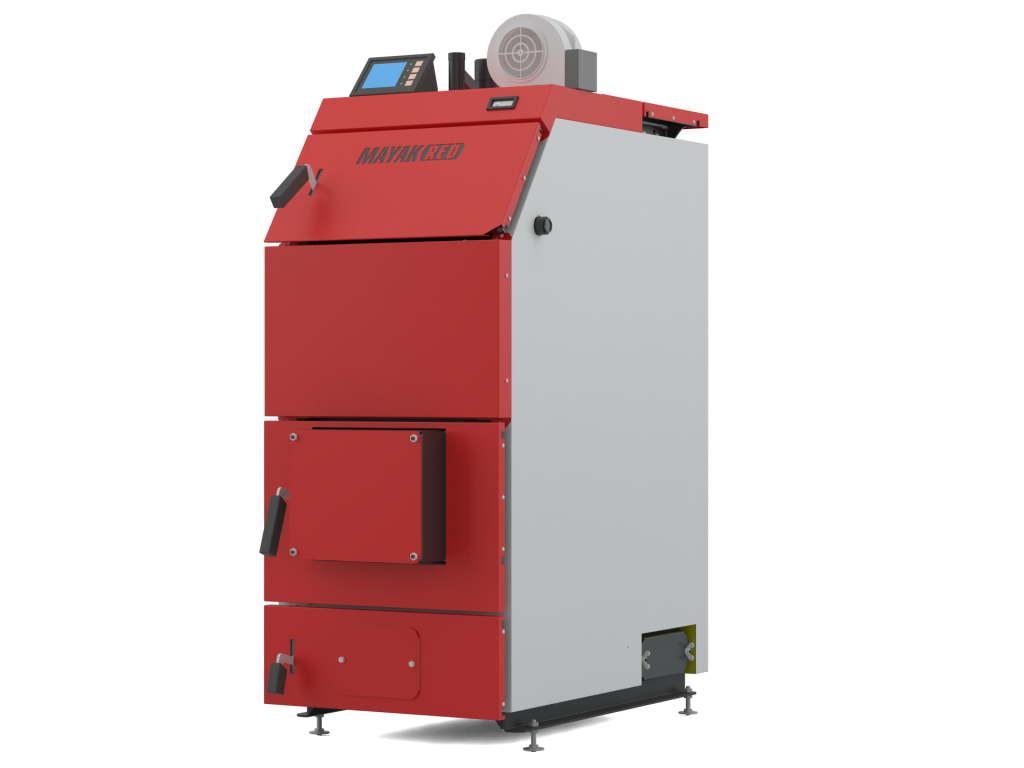

  2. Котел МАЯК КТР-25 TYPE V з вентилятором
    02

    Additional equipment for operation with an electronic temperature controller and fan

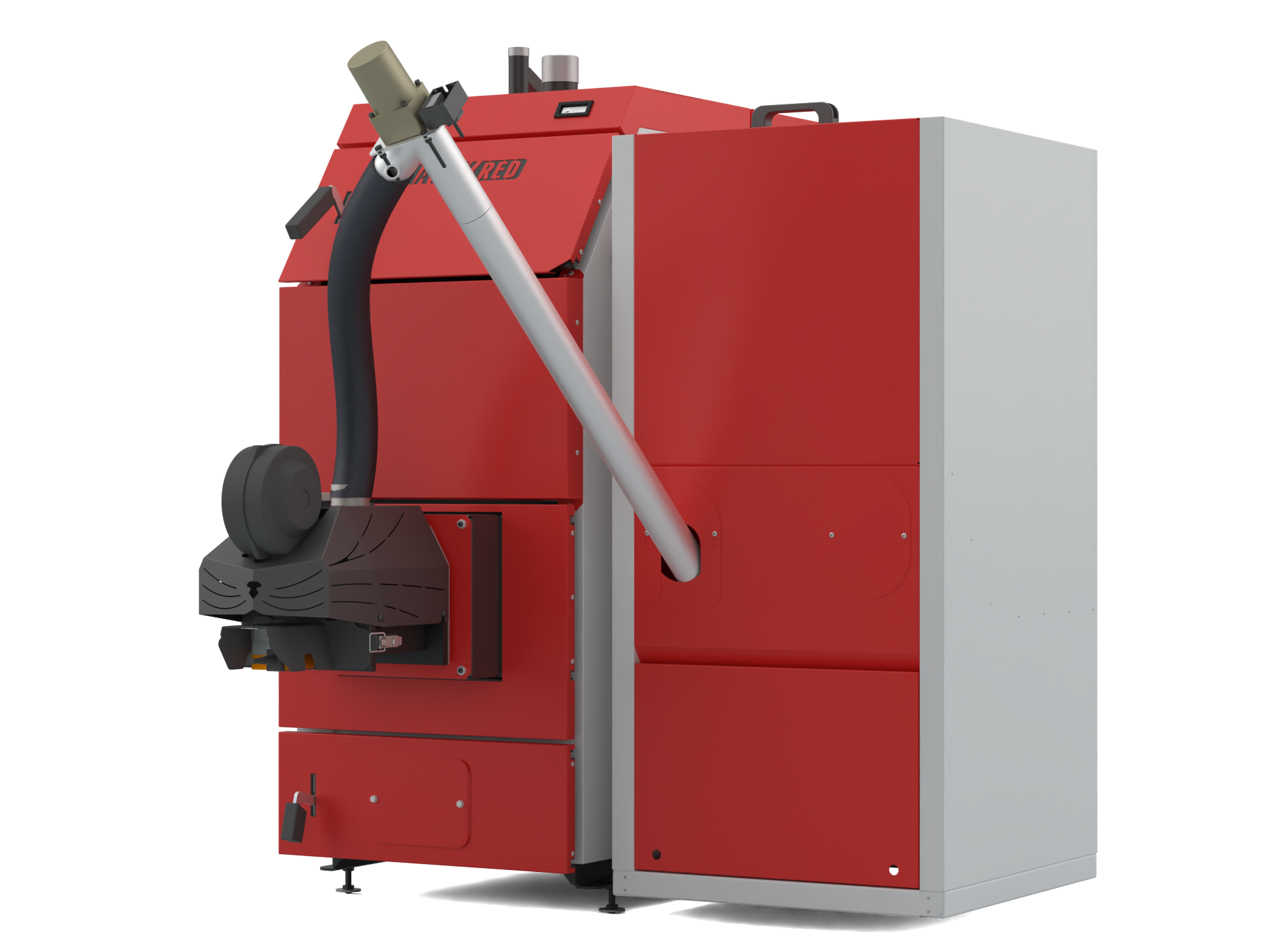

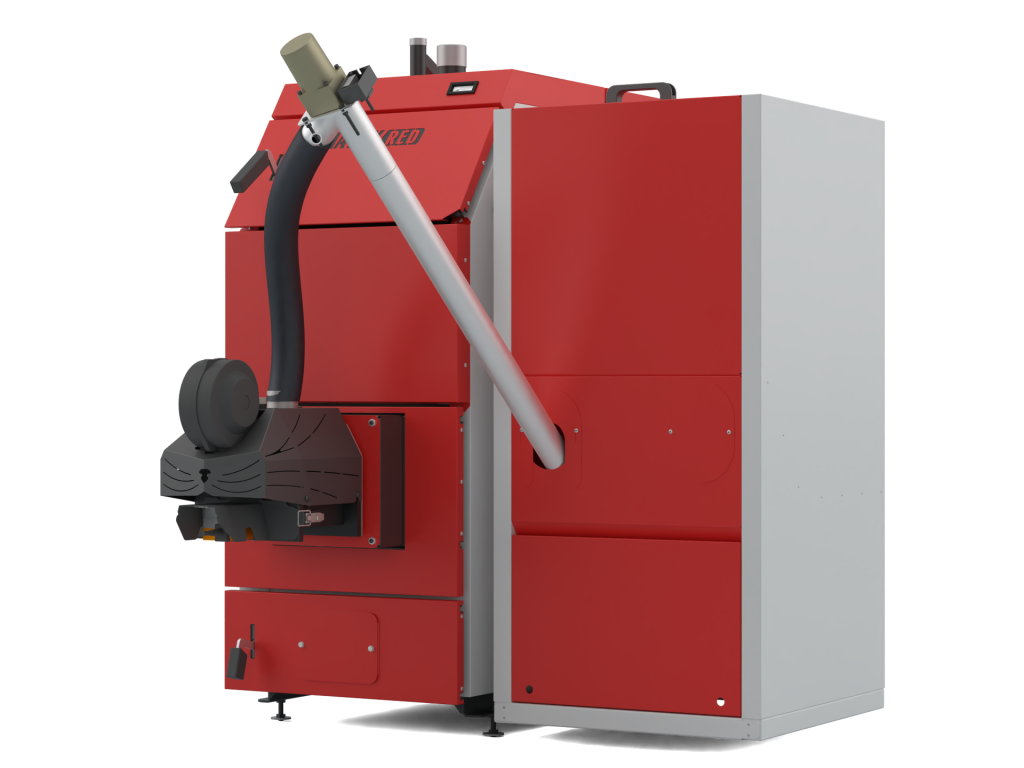

  3. Котел МАЯК КТР-25 TYPE V пелетний
    03

    Additional equipment for operation with an automatic torch-type pellet burner

Characteristic Units KTR-16 KTR-20 KTR-25 KTR-30 KTR-40 KTR-50
Power kW 162025304050
Heating area 160200250300400500
Metal thickness mm 6
Flue outlet outer diameter mm 138168178230
Firebox depth mm 400450550650
Firebox width mm 320370476
Firebox height mm 595705
Firebox volume L 7686117144185218
Heat carrier (water) volume L 8386,7105116131142
Dry weight kg 325344400435534564
Height mm 127013901450
Width mm 530580680
Depth mm 115012601270142014601560
