MAYAK Plant
Boilers of the STANDARD PLUS 5 MM series are designed for heating individual residential buildings and public or utility facilities equipped with a water-based heating system, either with natural or forced circulation. The heat losses of the buildings and the heating system capacity must not exceed the boiler’s nominal thermal output of the coolant.
Heating area: 100–320 m²
Efficiency: from 77%
Metal thickness: 5 mm
Fuel types: firewood, peat, coal, briquettes
Burning duration: up to 12 hours
Fuel loading: manual
Power output: 12–30 kW
Warranty: 3 years

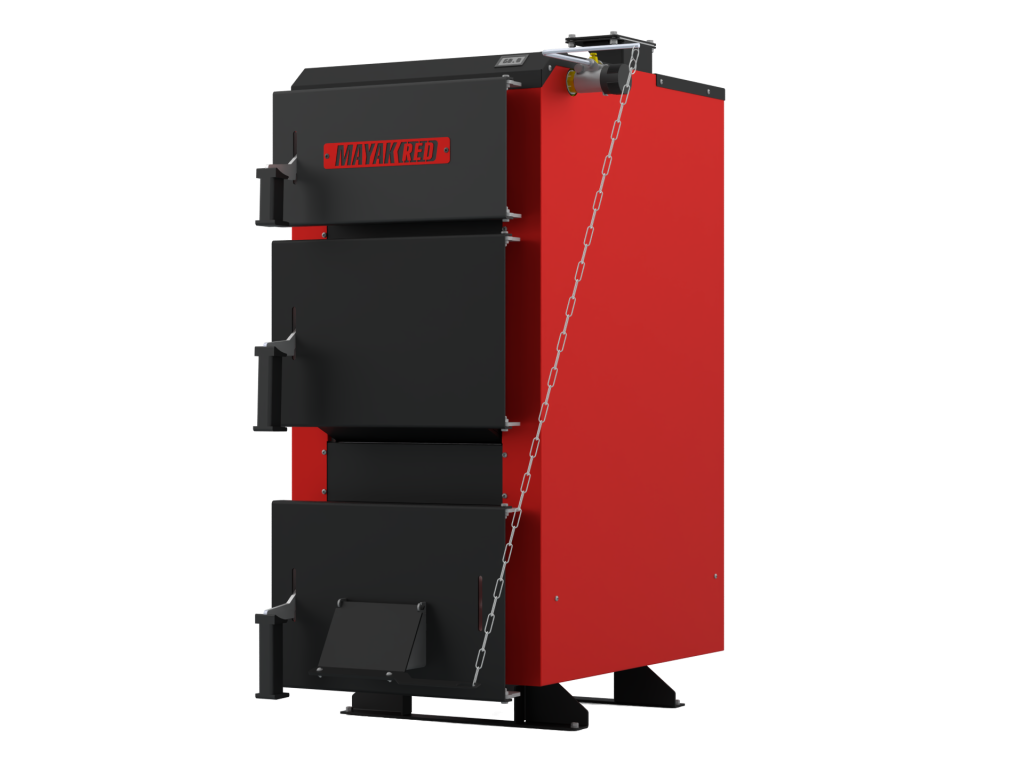

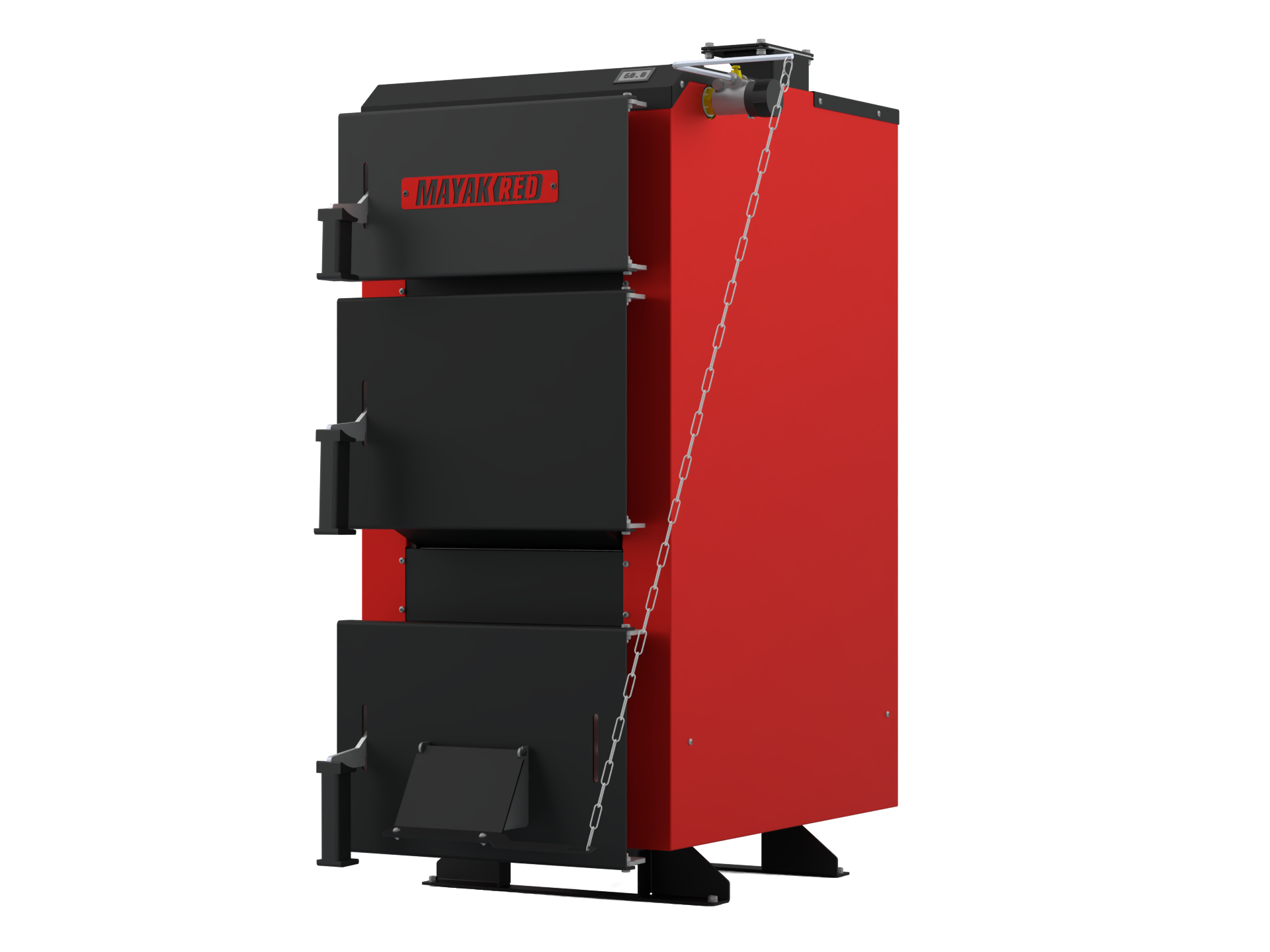

Additional equipment for operation with a mechanical temperature controller

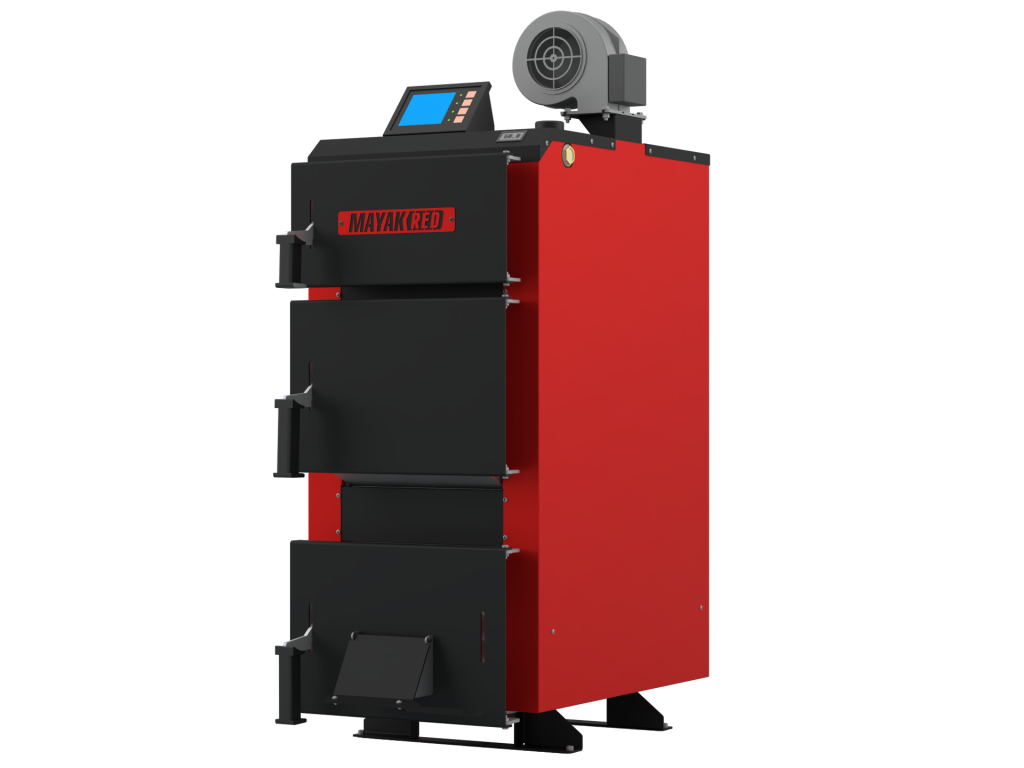

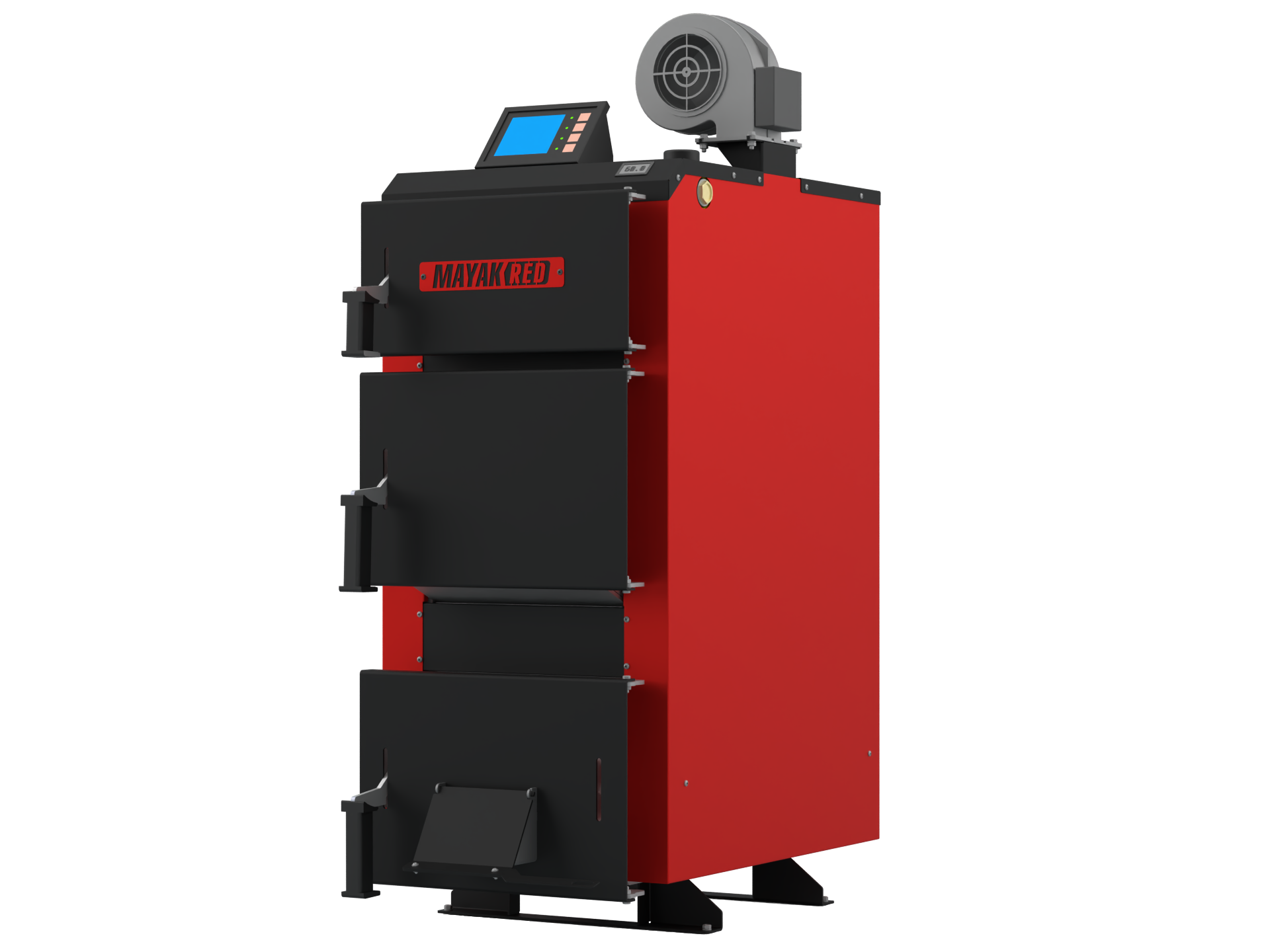

Additional equipment for operation with an electronic temperature controller and fan
| Characteristic | Units | АОТ-12 | АОТ-14 | АОТ-20 | АОТ-25 | АОТ-30 |
|---|---|---|---|---|---|---|
| Power | kW | 12 | 14 | 20 | 25 | 30 |
| Heating area | m² | 100-140 | 140-180 | 180-220 | 230-270 | 280-320 |
| Metal thickness | mm | 5 | ||||
| Flue outlet outer diameter | mm | 159 | ||||
| Firebox depth | mm | 450 | 500 | 550 | 600 | 650 |
| Firebox width | mm | 288 | ||||
| Firebox height | mm | 504 | 534 | 584 | 634 | |
| Firebox volume | L | 65 | 73 | 85 | 101 | 119 |
| Heat carrier (water) volume | L | 58 | 64 | 71 | 88 | 97 |
| Dry weight | kg | 173 | 190 | 201 | 230 | 250 |
| Height | mm | 1060 | 1080 | 1180 | 1230 | |
| Width | mm | 442 | ||||
| Depth | mm | 900 | 960 | 1010 | 1060 | 1110 |
