Industrial Fire-Tube Long-Burning Boilers KTT HEAVY

The KTT HEAVY series industrial fire-tube long-burning boilers are designed for heating large facilities equipped with a water heating system. These boilers are intended for operation on solid fuels such as anthracite, bituminous and brown coal, firewood, and briquettes. When additionally equipped with an automatic torch-type pellet burner, they can also operate on pellets.

The boilers are equipped with an automation system that maintains the set temperature throughout the working cycle.

Features

  • Feature Icon

    Heating area: 1000–6000 m²

  • Feature Icon

    Efficiency: from 90%

  • Feature Icon

    Metal thickness: 6 mm

  • Feature Icon

    Fuel types: firewood, peat, coal, briquettes

  • Feature Icon

    Burning duration: up to 24 hours

  • Feature Icon

    Fuel loading: manual

  • Feature Icon

    Power output: 100–600 kW

  • Feature Icon

    Warranty: 3 years

Advantages

  • Durable heavy-duty doors with double-layer thermal insulation
  • Efficiency of at least 90%
  • Combined heat exchanger design: fire-tube block + water-filled shelf
  • Anti-corrosion treatment of casing parts and high-quality powder coating
  • Modern design
  • The basic configuration includes a controller and air supply fans, which ensure automatic regulation of the set coolant temperature

Configurations

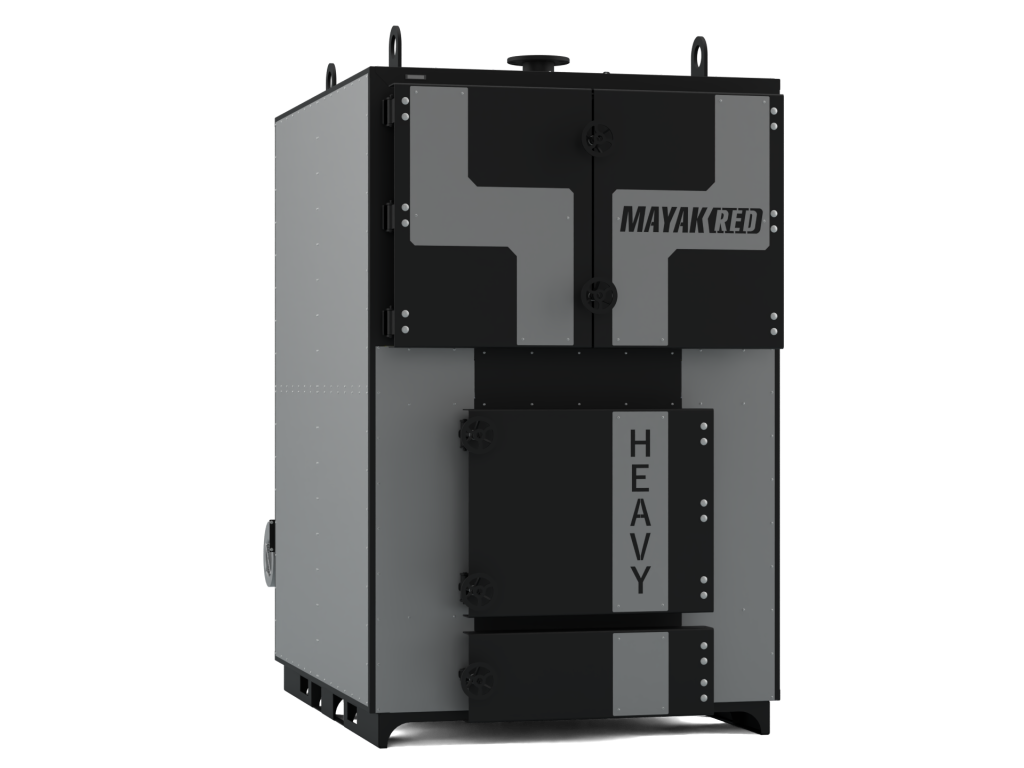

  1. Котел МАЯК КТТ-200 базовий
    01

    Basic configuration for manual fuel loading

  2. 02

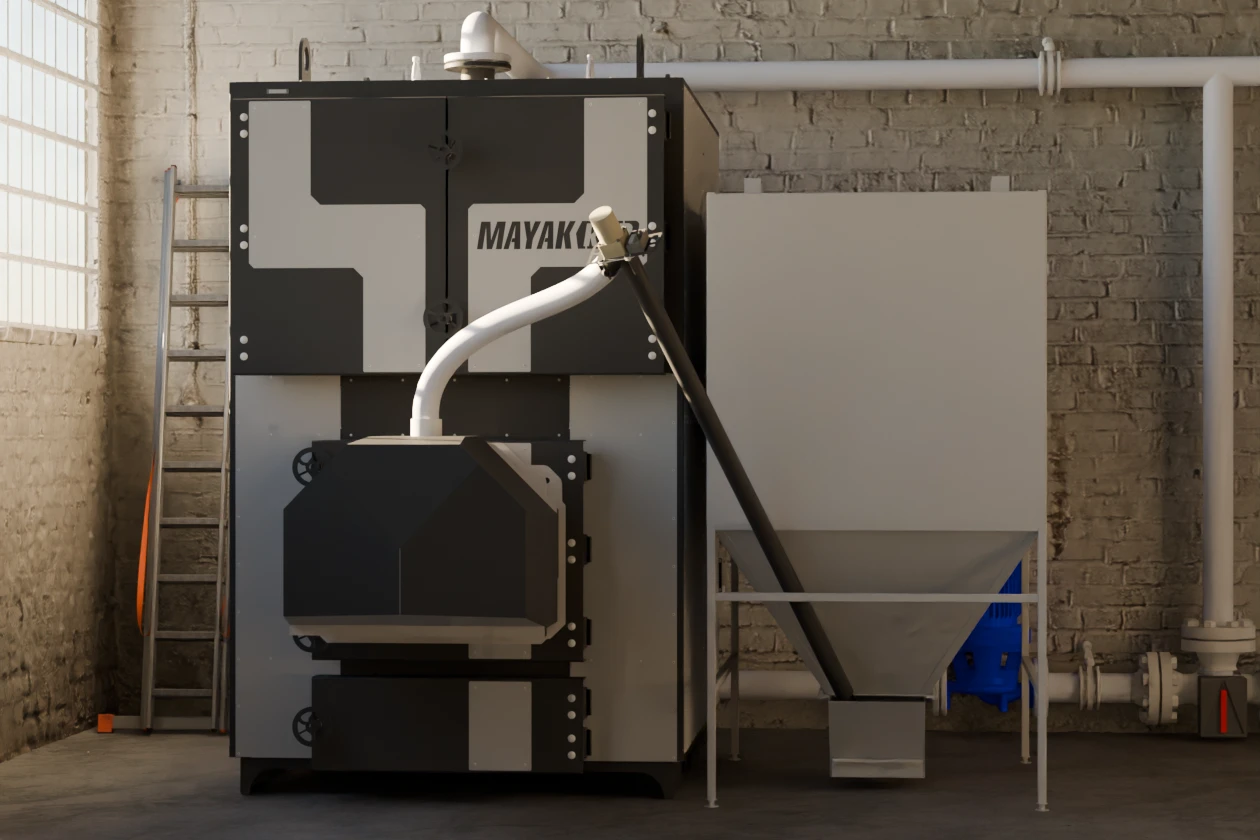

    Additional configuration with an automatic torch-type pellet burner

Characteristic Units KTT-100 KTT-150 KTT-200 KTT-250 KTT-300 KTT-400 KTT-500 KTT-600
Power kW 100150200250300400500600
Heating area 10001500200025003000400050006000
Metal thickness mm 6
Flue outlet outer diameter mm 298348448498
Firebox depth mm 1230128015801680
Firebox width mm 600700800892116010841276
Firebox height mm 560630640780930
Firebox volume L 41548064565590014301640
Heat carrier (water) volume L 400440570650810126014301640
Dry weight kg 12301350169018502310306032703800
Height mm 181020102110237025102640
Width mm 8509501050115014001520
Depth mm 20002050235023902490
